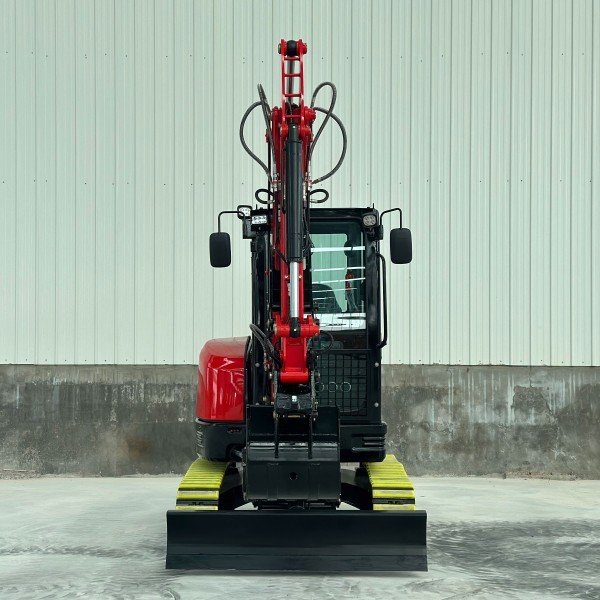

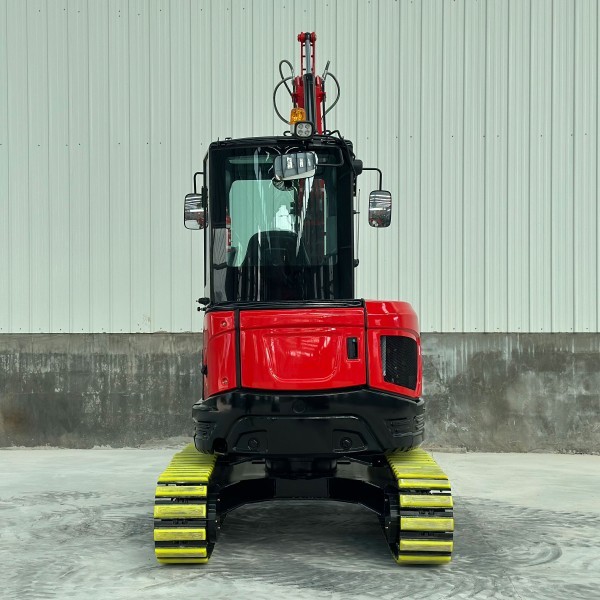

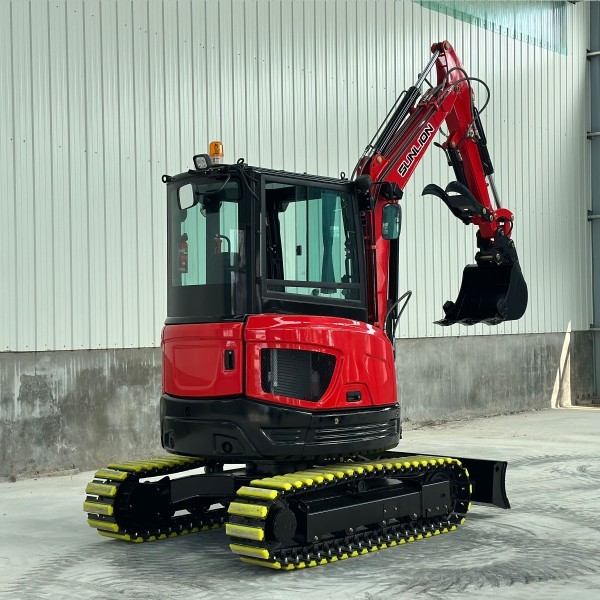

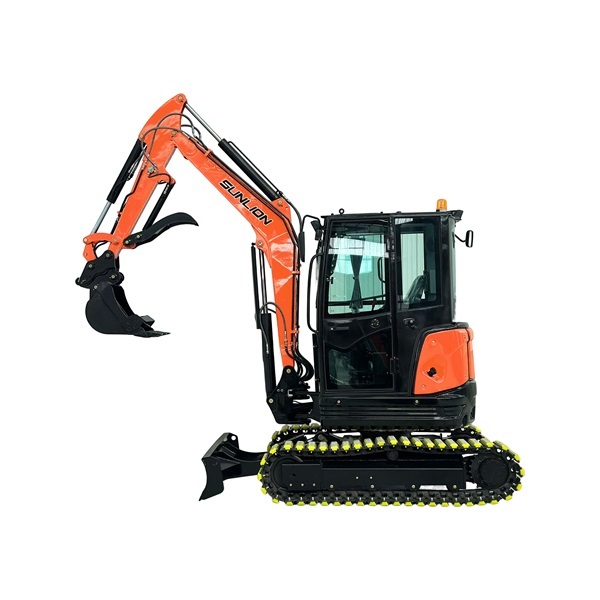

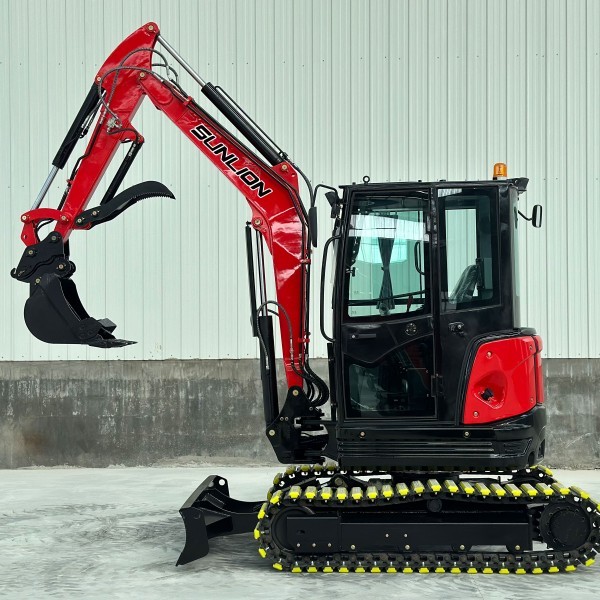

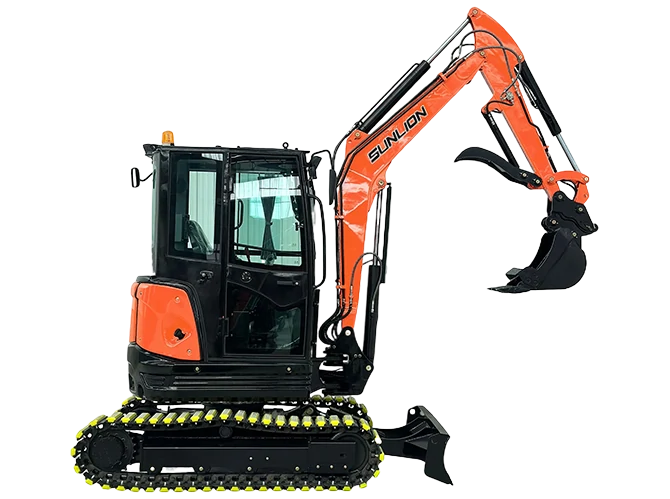

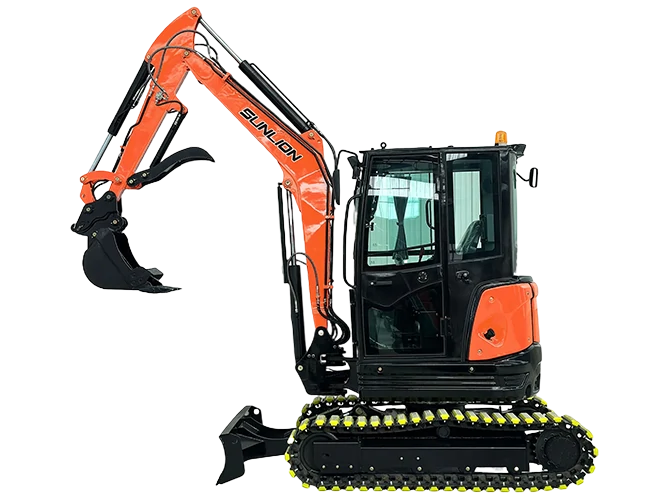

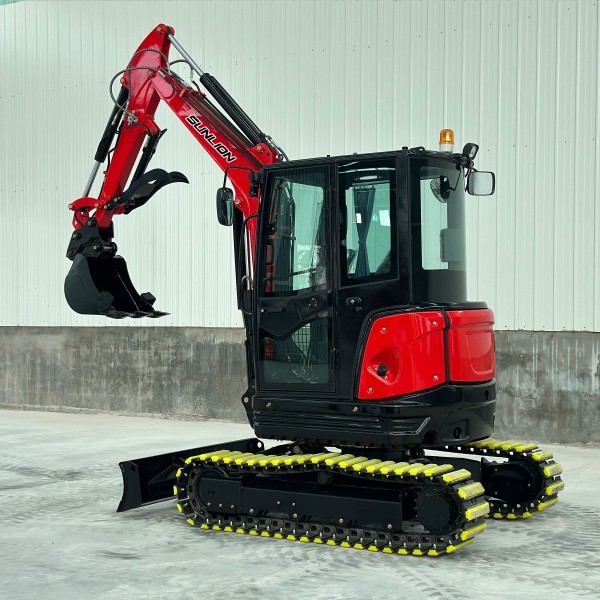

SL35U Mini Excavator
The company's main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Classification :
Keywords :
Mini Excavator
PRODUCT DETAILS
Born for Best Value
The SL-35U mini excavator, with a digging depth of 52.76 inches and a digging radius of 102.36 feet, is highly suitable for operations such as foundation engineering and public facility pipelines. It can easily enter narrow Spaces. This cost-effective and powerful excavator is an ideal choice for DIY enthusiasts and small contractors who wish to maximize their funds. It is the most economical choice in this series and the first choice for anyone entering the mini excavator field.>5% Deeper Than Others
15% Lower Ownership Costs15% Lower Ownership Costs
With industry-low prices and minimal upkeep costsCompact body convenient and flexible
The body is compact, flexible and convenient,and suitable for various scenariosPOWERFUL PERFORMANCE IN A COMPACT DESIGN
5% Deeper Than Others
Its advanced boom design excels in tough clay, rock, and compacted soil, making it the best choice for demanding jobs.
NARROWER EXCAVATOR WIDTH
Big Performance in a Compact Design

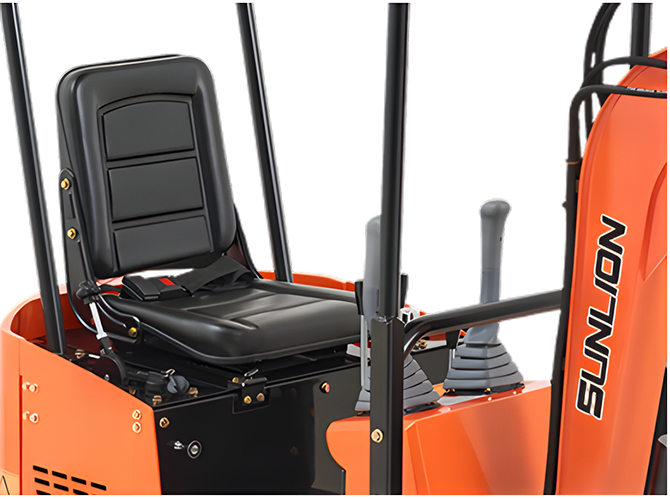

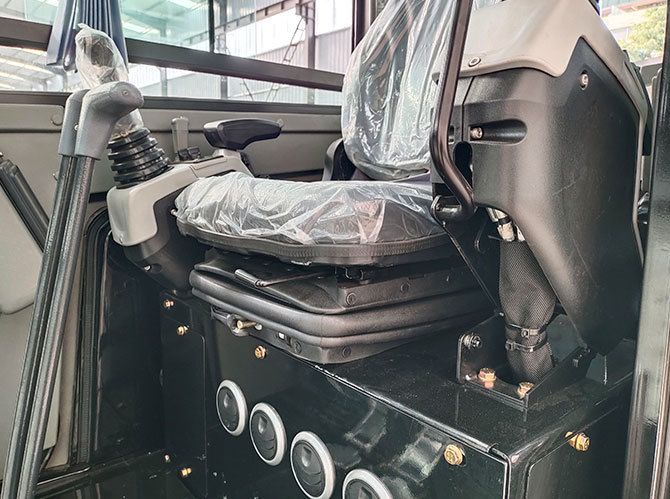

With a total width of just 3'1", our excavator is easy to maneuver in tight urban and residential spaces. The reduced tailswing model minimizes the risk of property damage near buildings and obstacles due to its minimal swing radius.All Day Comfort
Our mini excacator keeps you comfortableall day long.It’s designed with ergonomicsin mind,so you’ve got a supportive backrest and a soft seat that’ll make your day easier.

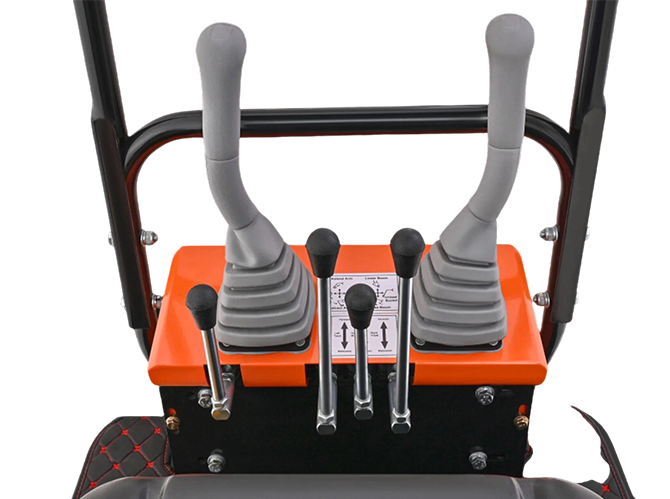

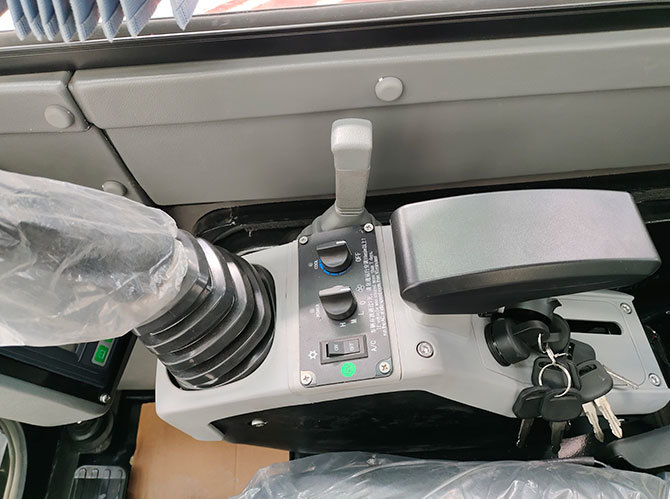

Hydraulic Joystick Control
·The hydraulic joystick on SUNLION mini excavators ensures smooth, efficient operation. It allows precise control of attachments with minimal effort, reducing fatigue during grading and backfilling. ·Designed with the International Standards Organisation (ISO) operation mode, it ensures simplicity and ease of use, with minimal learning curve.
| MAIN DIMENSIONS | |
| Overall Length（mm） | 4945 |
| Overall Width（mm） | 1700 |
| Overall Height（mm） | 2585 |
| Track Width（mm） | 300 |
| Track Length（mm） | 2286 |
| Body Width（mm） | 1500 |
| SPECIFICATION | |
| Operation Weight（t） | 3.5ton |
| Rated Power | 18.2kw |
| Digging Bucket Capacity（m³） | 0.11 |
| Bucket Width | 530mm |
| Travel Speed（km/h） | 4.0/2.3 Km/h |
| Swing Speed | 12r/min |
| Body Swing Radius | 858 |
| Body Swing Angle | 360 |
| Boom Swing Angle(L/R) | 68/50 |
| Max. Grade Ability | 35 |
| Fuel Tank（L) | 40L |
| Hydraulic Oil Tank（L) | 41L |
| WORKING RANGE | |
| Max. Digging Radius（mm） | 5251 |
| Max Digging Depth（mm） | 3071 |
| Max. Digging Height（mm） | 4815 |
| Max. Unloading Height（mm） | 3382 |
| Min. Swing Radius（mm） | 2250 |
| Max. Digging Depth Of Dozer Blade（mm） | 433 |
| Max. Lifting Height Of Dozer Blade（mm） | 345 |
