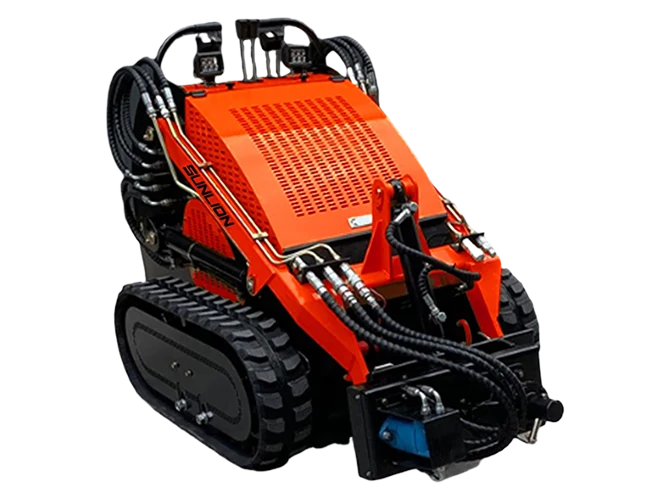

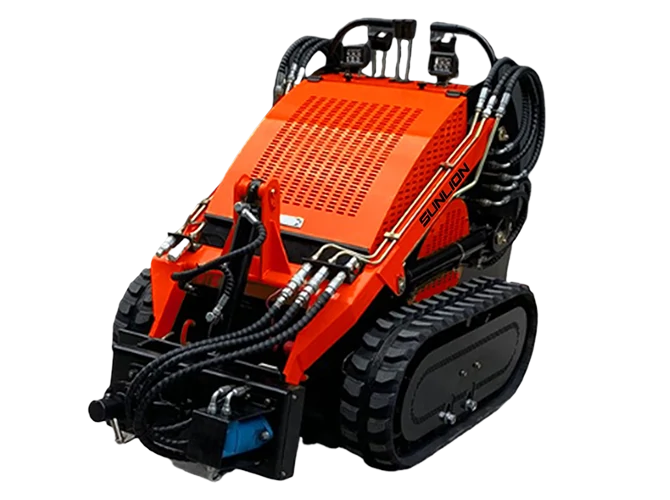

T380 Skid Steer Loader
The company's main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Classification :
Keywords :
Mini Skid Steer Loader
PRODUCT DETAILS
Built to Handle Anything
T380 Skid steer loader is built for tough jobs in tight spaces. It’s great for digging, hauling, and trenching on farms, in gardens, or warehouses. Plus, it works with attachments
like Root Grapples, Stump Grinders, and Augers, making it the go-to machine for versatility and power.
Low Fuel Consumption
This mini skid steer loaders delivers solid power while keeping fuel consumption low. Work up to 7 hours after a single refill. That means you get more done while keeping operational costs down.
Compact and Maneuverable Design
Sunlion skid steer loaders excel in tight spots where others can’t go, smoothly navigating small indoor and outdoor spaces. Their compact design fits through doorways and gates and makes loading onto trailers a breeze.Powerful Performance
Don’t let the small size fool you! This skid steer loaders boasts a maximum lift capacity of 617 lb. (280 kg), and a dumping height of up to 91.97 in. (2336mm). It packs a punch for such a compact machine, making it ideal for a wide range of jobs.
Attachment with Fast Changes
The Sunlion compact skid steer loaders uses an easy-to-use attachment mounting system for quickly swapping between tasks. Whether you need to switch from grading to digging or hauling materials, the system ensures fast and secure attachment changes so you can stay focused on the work.
| PERFORMANCE | |
| Engine Power（HP) | 23 |
| Speed- standard(KM/H) | 6.7 |
| Track type | 180*72 |
| Rated loading capacity(KG) | 380 |
| Lifting type | Radial lift |
| Total cycle time(S) | 9.2 |
| Bucket capacity(m³） | 0.17 |
| System pressure（bar） | 170 |
| Hydraulic pump output flow（L/min） | 38 |
| Starting battery | 12V |
| Hydraulic oil tank（L) | 30 |
| Fuel tank（L) | 20 |
| Wight without bucket(KG) | 700 |
| DIMENSION | |
| Overall operating height(MM) | 2510 |
| Height to bucket hinge pin(MM) | 1940 |
| Height to top of cab(MM) | 1350 |
| Height to bottom of level bucket(MM) | 1800 |
| Overall length without bucket(MM) | 1820 |
| Overall length with bucket(MM) | 2200 |
| Dumping angle at maximum height | 40 |
| Dumping height(MM) | 1510 |
| Dumping reach(MM) | 460 |
| Rollback of bucket on ground | 30 |
| Rollback of bucKet at full heirht | 105 |
| Wheelbase(MM) | — |
| Ground clearance(MM) | 186 |
| Angle of departure | 26 |
| Turning radius front without bucket(MM) | 800 |
| Front turning radius with bucket(MM) | — |
| Rear turning radius(MM) | — |
| Track width(MM) | — |
| Width(MM) | 960 |
| Bucket width(MM) | 1000 |
