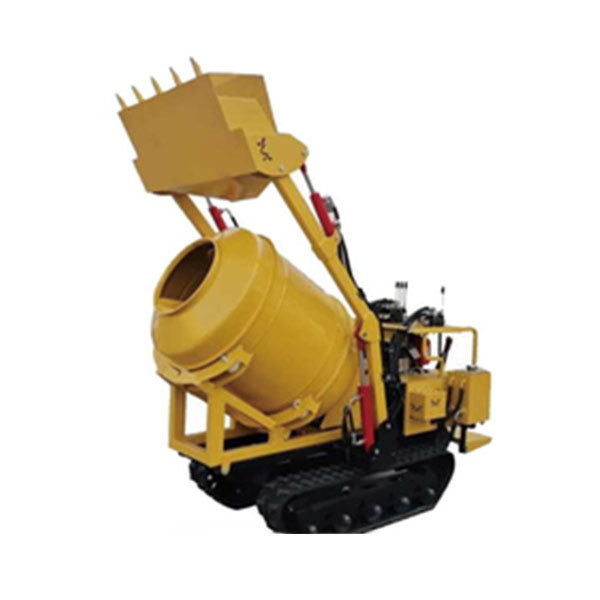

YJB-500 Mini Dumper
The company's main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Classification :
Keywords :
Mini Dumper
PRODUCT DETAILS
| PRODUCT PARAMETERS | |
| ENGINE | CHANGCHAI 186F DIESEL ENGINE 10HP 4-STROKE 3600R/MIN H/D BRIGGD&STRATTON EPA13.5HP 4-STROKE 3600R/MIN H/D |
| GEARBOX | GL-13 GEAR:3F+R NO PARKING BRAKE |
| OPERATION WAYS | MANUAL LEVER |
| UNLOADINGWAYS | HYDRAULIC,BI-DIRECTIONAL MANUAL CONTROL VALVE OPERATION |
| CAPACITY OF SHOVEL | 0.12M³ |
| FEEDING CAPACITY | ≥500L |
| DISCHARGE CAPACITY | ≤400L |
| WEIGHT OFMIXER | ≤900KG |
| SIZE OF DRUM | φ760*980 |
| OVERALL SIZE | 2600(3050WITHSHOVELLOWERED)×1080×1680MM |
| VEHICLEWEIGHT | 720KG |
| RUBBER CRAWLER SIZE | 180X72X42 |
| RUBBER CRAWLER TOUCHING LENGTH | 1100MM |
| LOADING CAPACITY | FLAT GROUND 1200KG 30°SLOPE750KG |
| WALKING SPEED | 0-8KM |
| OBSTACLEABILITY | MAX.30SLOPE VERTICAL HEIGHT 200MM |
| WADING DEPTH | 350MM |
| PACKAGE SIZE | SINGLE UNIT WOODENCASE:2300×1080×1850MM |
| WEIGHT(NET WEIGHT/GROSS WEIGHT) | 765KG/845KG |
| CONTAINER(20FT/40FT) | 5SETS/10SETS(NUDE PACKING) |
