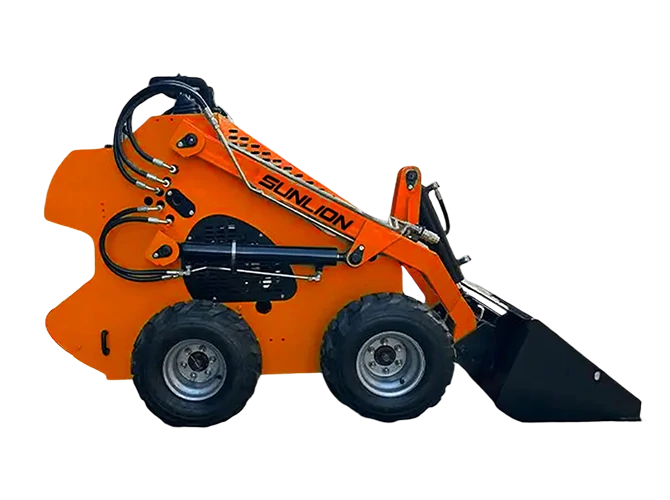

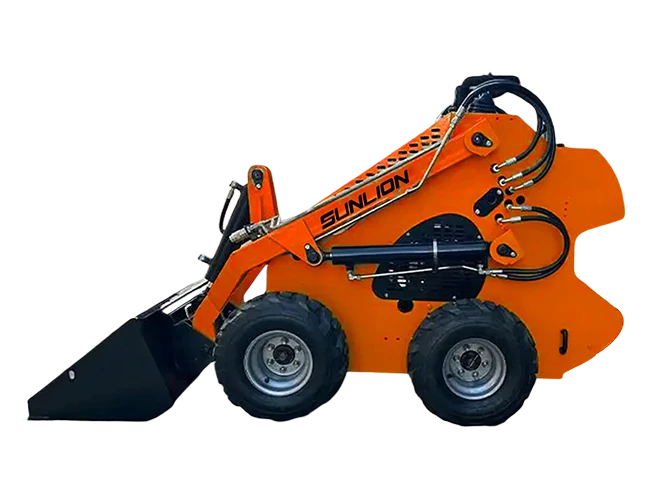

S280 Skid Steer Loader
The company's main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Classification :
Keywords :
Mini Skid Steer Loader
PRODUCT DETAILS
Built to Handle Anything
S280 Skid steer loader is built for tough jobs in tight spaces. It’s great for digging, hauling, and trenching on farms, in gardens, or warehouses. Plus, it works with attachments
like Root Grapples, Stump Grinders, and Augers, making it the go-to machine for versatility and power.
Low Fuel Consumption
This mini skid steer loaders delivers solid power while keeping fuel consumption low. Work up to 7 hours after a single refill. That means you get more done while keeping operational costs down.
Compact and Maneuverable Design
Sunlion skid steer loaders excel in tight spots where others can’t go, smoothly navigating small indoor and outdoor spaces. Their compact design fits through doorways and gates and makes loading onto trailers a breeze.Powerful Performance
Don’t let the small size fool you! This skid steer loaders boasts a maximum lift capacity of 617 lb. (280 kg), and a dumping height of up to 91.97 in. (2336mm). It packs a punch for such a compact machine, making it ideal for a wide range of jobs.
Attachment with Fast Changes
The Sunlion compact skid steer loaders uses an easy-to-use attachment mounting system for quickly swapping between tasks. Whether you need to switch from grading to digging or hauling materials, the system ensures fast and secure attachment changes so you can stay focused on the work.
| PERFORMANCE | |
| Engine Power（HP) | 14 |
| Speed- standard(KM/H) | 6 |
| Tubeless tires | 500-8 |
| Solid tires optional | 500-8 |
| Rated loading capacity(KG) | 280 |
| Lifting type | Radial lift |
| Total cycle time(S) | 8.9 |
| Bucket capacity(m³） | 0.12 |
| System pressure（bar） | 170 |
| Hydraulic pump output flow（L/min） | 38 |
| Starting battery | 12V |
| Hydraulic oil tank（L) | 25 |
| Fuel tank(L) | 6 |
| Wight without bucket(KG) | 620 |
| DIMENSION | |
| Overall operating height (MM) | 2460 |
| Height to bucket hinge pin(MM) | 1980 |
| Height to top of cab(MM) | 1320 |
| Height to bottom of level bucket(MM) | 1860 |
| Overall length without bucket(MM) | 1730 |
| Overall length with bucket(MM) | 2200 |
| Dumping angle at maximum height(°） | 40 |
| Dumping height(MM) | 2336 |
| Dumping reach(MM) | 530 |
| Rollback of bucKet on ground（°） | 30 |
| Rollback of bucKet at full heirht(°） | 98 |
| Wheelbase(MM) | — |
| Ground clearance(MM) | 150 |
| Angle of departure（°） | 26 |
| Turning radius front without bucket(MM) | 760 |
| Front turning radius with bucket(MM) | — |
| Rear turning radius(MM) | — |
| TrEad width, center line to center line(MM) | 760 |
| Width between outside of two wheels(MM) | 800 |
| Bucket width(MM) | 860 |
The S280 Skid Steer Loader is an exceptional piece of machinery designed to excel in various tasks.
Built for versatility, it's perfect for digging, hauling, and trenching, whether on farms, in gardens, or within warehouses. It works seamlessly with a range of attachments like Root Grapples, Stump Grinders, and Augers, making it a highly adaptable machine for different jobs.
Fuel efficiency is one of its key features. With low fuel consumption, it can operate for up to 7 hours on a single refill. This not only allows you to get more work done but also significantly reduces operational costs.
Its compact and maneuverable design enables it to access tight spaces with ease. It can smoothly navigate small indoor and outdoor areas, fit through doorways and gates, and be conveniently loaded onto trailers.
Despite its small size, it offers powerful performance. With a maximum lift capacity of 280 kg (617 lb) and a dumping height of 2336 mm (91.97 in), it can handle a wide range of tasks effectively.
The fast - change attachment system is another advantage. Using an easy - to - use mounting system, it allows for quick and secure swapping between different tasks. Whether changing from grading to digging or hauling materials, it ensures minimal downtime.
In terms of performance, it has an engine power of 14 HP, a standard speed of 6 KM/H, and a bucket capacity of 0.12 m³. With a system pressure of 170 bar and a hydraulic pump output flow of 38 L/min, it delivers reliable power.
In summary, the S280 Skid Steer Loader combines compactness, power, versatility, and fuel efficiency, making it an ideal choice for a variety of applications.
