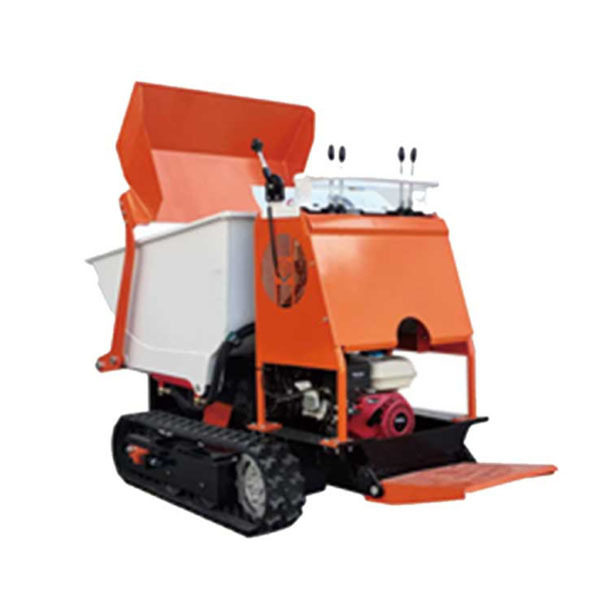

YC-500 Mini Dumper
The company's main products cover various types of small excavators, skid steer loaders and diverse attachments, which are widely used in agriculture, municipal administration, construction and logistics fields.
Classification :
Keywords :
Mini Dumper
PRODUCT DETAILS
| PRODUCT PARAMETERS | |
| MODEL | YC-500 MINI BUCKET DUNPER |
| DRIVING METHOD | STATIONARY DRIVING |
| DRIVE TYPE | HYDRAULIC DRIVE FOR MOVEMENT |
| STEERINGMETHOD | HYDRAULIC CONTROLVALVE×2,ONE CONTROLS TWO |
| TRACK SPECIFICATIONS | 150*60*38 |
| OPERATING WEIGHT | 950KG(500KG) |
| ENGINE MODELAND POWER | BRIGGD&STRATTON6.5HP EPA 3600RPM |
| ENGINE START-UP METHOD | HAND CRANK START |
| FUEL TANK CAPACITY | 3.6L |
| CARRIAGE TYPE ANDVOLUME | U-SHAPED/280L |
| UNLOADING METHOD | HYDRAULIC DUMP |
| HOPPER ROTATION ANGLE | 0 |
| HYDRAULIC PUMP | SERIES GEAR PUMP(4CC/4CC) |
| HYDRAULIC MOTOR | DISK WITH BMYS MOTOR×2 |
| OPERATING PRESSURE | MAXIMUM 180BAR |
| FLOW RATE | 8.0L |
| MOTOR TORQUE | 645NM 180BAR |
| WALKING SPEED | 0-3.5KM |
| CLIMBING ABILITY | 30° |
| WADING DEPTH | 300MM |
| GROUND CLEARANCE | 100MM |
| OVERALL DIMENSIONS | 2080×850×1260MM |
| PACKAGING DIMENSIONS | 1650*880"1350MM |
| WEIGHT(N/G) | 415/470 |
